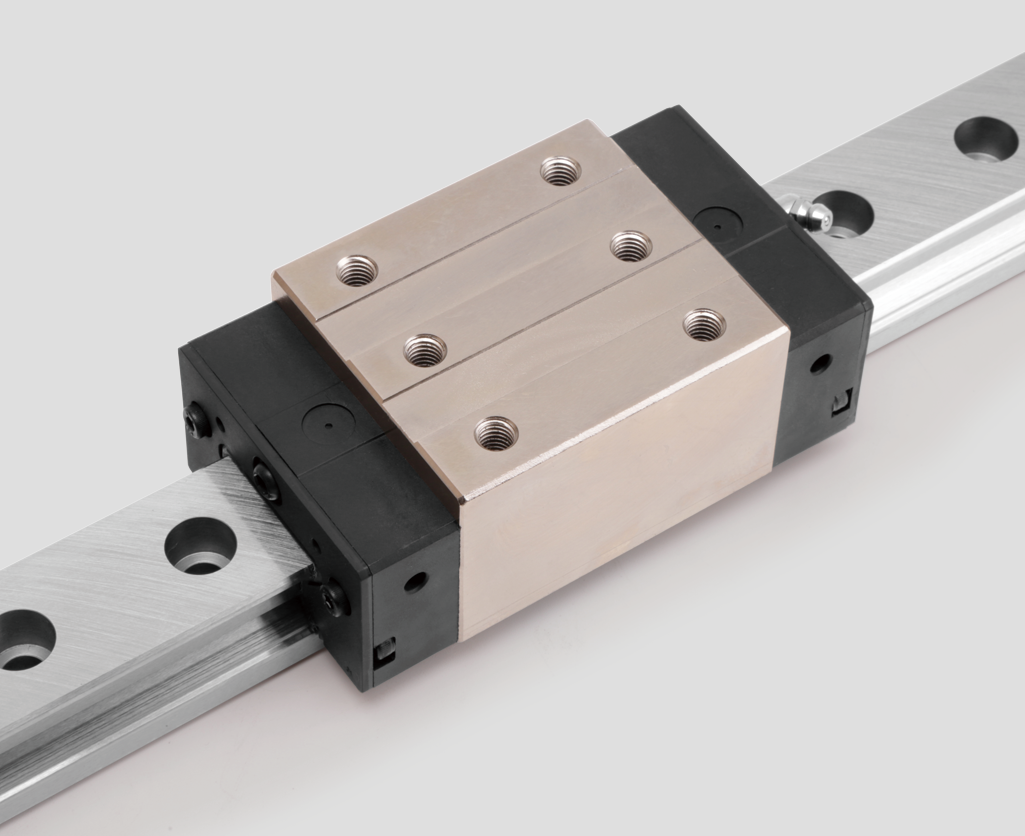

| 產品名稱 | SNHR65H 方形滾柱滑塊 |
| 類目 | 直線導軌 |
| 品牌 | JYU捷優 |
| 型號 | SNHR65H |
| 型號 Model |
組件尺寸 Component Demension | 滑塊尺寸(MM) Block Dimension |
油嘴規格 Grease Nipple Specification | ||||||||||||||||

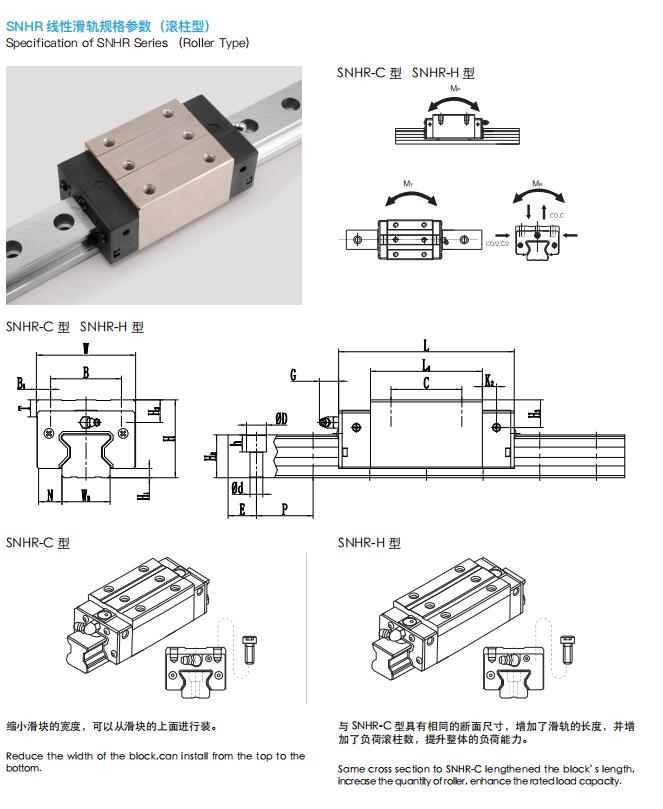

| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | MXL | T | H2 | H3 | ||||
| SNHR20C | 34 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5X8 | 8 | 8.3 | 8.3 | G-M6 | ||
| SNHR20H | 50 | 77.5 | 106 | 18.8 | |||||||||||||||
| SNHR25C | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 64.5 | 97.9 | 20.75 | 7.25 | 12 | M6X8 | 9.5 | 10.2 | 10 | G-M6 | ||
| SNHR25H | 50 | 81 | 114.4 | 21.5 | |||||||||||||||
| SNHR30C | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | M8X10 | 9.5 | 9.5 | 10.3 | G-M6 | ||
| SNHR30H | 60 | 93 | 131.8 | 24.5 | |||||||||||||||
| SNHR35C | 55 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | M8X12 | 12 | 16 | 19.6 | G-M6 | ||
| SNHR35H | 72 | 106.5 | 151.5 | 25.5 | |||||||||||||||
| SNHR45C | 70 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10X17 | 16 | 20 | 24 | G-PT1/8 | ||
| SNHR45H | 80 | 139.8 | 187 | 37.9 | |||||||||||||||
| SNHR55C | 80 | 10 | 23.5 | 100 | 75 | 12.5 | 75 | 125.5 | 183.7 | 37.75 | 12.5 | 12.9 | M12X18 | 17.5 | 22 | 27.5 | G-PT1/8 | ||
| SNHR55H | 95 | 173.8 | 232 | 51.9 | |||||||||||||||
| SNHR65C | 90 | 12 | 31.5 | 126 | 76 | 25 | 70 | 160 | 232 | 60.8 | 15.8 | 12.9 | M16X20 | 25 | 15 | 15 | G-PT1/8 | ||
| SNHR65H | 120 | 223 | 295 | 67.3 | |||||||||||||||
| 型號 Model |
導軌尺寸 Rail Dimensions (mm) |
導軌固定 螺栓尺寸 Tightening Bolt of Rail | 基本額定負荷 Basic Load Rating |
容許靜力矩 Allowable Static Torque |
重量 Weight |
||||||||||||||
| WR | HR | D | h | d | P | E | (mm) | C (KN) |
Co (KN) |
MR KN-m |
MP KN-m |
MY KN-m |
滑塊 Block(kg) | 導軌(kg/m) Rail(kg/m) |
|||||
| SNHR20C | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5X20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.44 | 2.76 | ||||
| SNHR20H | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.62 | |||||||||||||
| SNHR25C | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6X20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.67 | 3.08 | ||||
| SNHR25H | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.86 | |||||||||||||
| SNHR30C | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8X25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 1.06 | 4.41 | ||||
| SNHR30H | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.42 | |||||||||||||
| SNHR35C | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8X25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.61 | 6.06 | ||||
| SNHR35H | 73.1 | 142 | 2.93 | 2.6 | 2.6 | 2.21 | |||||||||||||
| SNHR45C | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12X35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 3.22 | 9.97 | ||||
| SNHR45H | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 4.41 | |||||||||||||
| SNHR55C | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14X45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 | 5.18 | 13.98 | ||||
| SNHR55H | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 7.34 | |||||||||||||
| SNHR65C | 63 | 53 | 26 | 22 | 18 | 75 | 35 | M16X50 | 213 | 411.6 | 16.2 | 11.59 | 11.59 | 11.04 | 20.22 | ||||
| SNHR65H | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 15.75 | |||||||||||||
