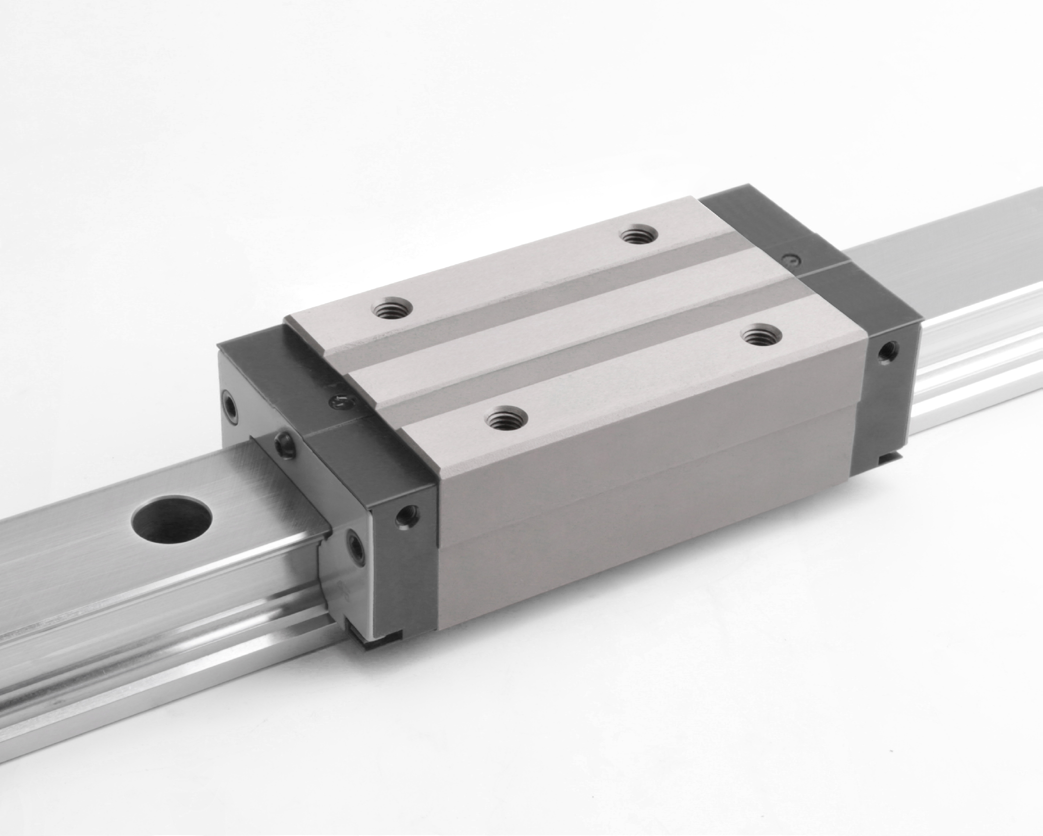

| 產品名稱 | FNLA35CS 低組裝有法蘭滾珠滑塊 |
| 類目 | 直線導軌 |
| 品牌 | JYU捷優 |
| 型號 | FNLA35CS |

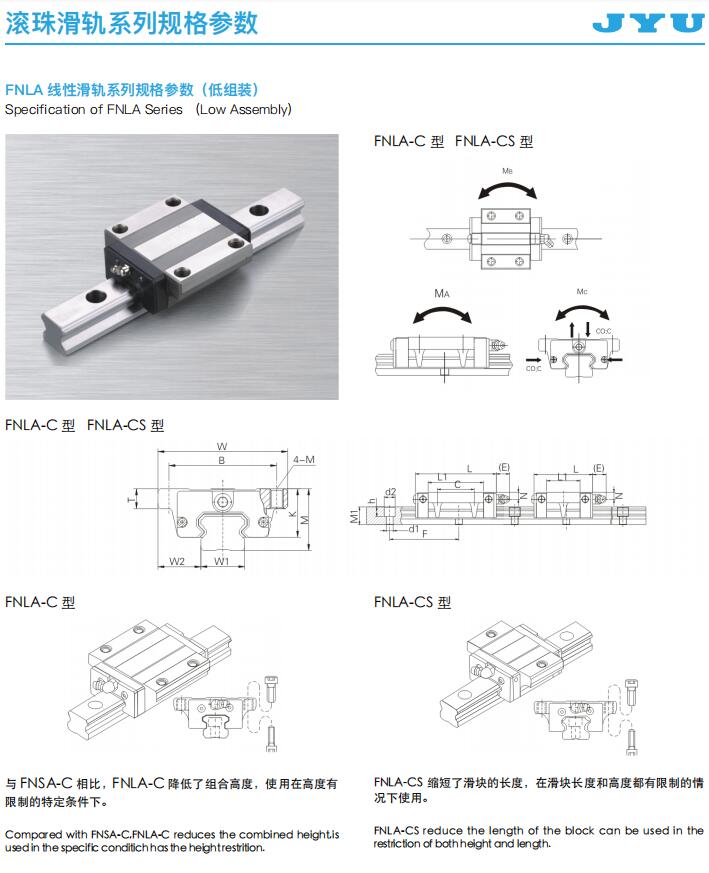

| 型號 Model |
外形尺寸 Physical Dimension |
滑塊尺寸 Block Dimension |
油嘴規格 Grease Nipple Specification |
|||||||||
| 高度M Height M |
寬度W Wight W |
長度L Length L |
B | C | M | L1 | T | K | N | E | ||
| FNLA15C | 24 | 52 | 56.8 | 41 | 26 | M5 | 39.8 | 7.2 | 19.7 | 5.5 | 5.5 | G-M4 |
| FNLA15CS | 24 | 52 | 40.1 | 41 | - | M5 | 23.1 | 7.2 | 19.7 | 5.5 | 5.5 | G-M4 |
| FNLA20C | 28 | 59 | 70.1 | 49 | 32 | M6 | 48.1 | 9 | 22.3 | 6 | 12 | G-M6 |
| FNLA20CS | 28 | 59 | 51 | 49 | - | M6 | 29 | 9 | 22.3 | 6 | 12 | G-M6 |
| FNLA25C | 33 | 73 | 83 | 60 | 35 | M8 | 59 | 11 | 26.8 | 8 | 12 | G-M6 |
| FNLA25CS | 33 | 73 | 59.5 | 60 | - | M8 | 35.5 | 11 | 26.8 | 8 | 12 | G-M6 |
| FNLA30C | 42 | 90 | 98.1 | 72 | 40 | M10 | 70.1 | 11 | 32 | 8 | 12 | G-M6 |
| FNLA30CS | 42 | 90 | 69.5 | 72 | - | M10 | 41.5 | 11 | 32 | 8 | 12 | G-M6 |
| FNLA35C | 48 | 100 | 108 | 82 | 50 | M10 | 78 | 14 | 37 | 8.5 | 12 | G-M6 |
| FNLA35CS | 48 | 100 | 75 | 82 | - | M10 | 45 | 14 | 37 | 8.5 | 12 | G-M6 |
| 型號 Model |
導軌尺寸 Rail Dimension |
基本額定負荷 Basic Load Rating |
重量 Weight |
|||||||||
| 寬度W1 Width W1 |
W2 | 高度M1 | 節距F | d1 xd2xh | C(KN) | Co (KN) | 容許靜力矩 | 滑塊 Block(kg) | 導軌(kg/m) Rail(kg/m) | |||
| HeightM1 | Length of pitch F | MR KN-m |
MP KN-m |
MY KN-m |
||||||||
| FNLA15C | 15 | 18.5 | 12.5 | 60 | (3.5 x 6 x 4.5) 4.5 x 7.5 x 5.3 |
7.83 | 16.19 | 0.07 | 0.04 | 0.04 | 0.21 | 1.25 |
| FNLA15CS | 15 | 18.5 | 12.5 | 60 | (3.5 x 6 x 4.5) 4.5 x 7.5 x 5.3 |
5.35 | 9.4 | 0.12 | 0.09 | 0.09 | 0.12 | 1.25 |
| FNLA20C | 20 | 19.5 | 15.5 | 60 | 6 x 9.5 x 8.5 | 10.31 | 21.13 | 0.12 | 0.05 | 0.05 | 0.32 | 2.08 |
| FNLA20CS | 20 | 19.5 | 15.5 | 60 | 6 x 9.5 x 8.5 | 7.23 | 12.74 | 0.20 | 0.14 | 0.14 | 0.19 | 2.08 |
| FNLA25C | 23 | 25 | 18 | 60 | 7 x 11 x 9 | 16.27 | 32.4 | 0.21 | 0.11 | 0.11 | 0.59 | 2.67 |
| FNLA25CS | 23 | 25 | 18 | 60 | 7 x 11 x 9 | 11.4 | 19.5 | 0.34 | 0.29 | 0.29 | 0.35 | 2.67 |
| FNLA30C | 28 | 31 | 23 | 80 | 7 x 11 x 9 (9 x14 x12) |
23.7 | 47.46 | 0.38 | 0.19 | 0.19 | 1.04 | 4.35 |
| FNLA30CS | 28 | 31 | 23 | 80 | 7 x 11 x 9 (9 x14 x 12) |
16.42 | 28.1 | 0.61 | 0.50 | 0.50 | 0.62 | 4.35 |
| FNLA35C | 34 | 33 | 27.5 | 80 | 9 x 14 x 12 | 33.35 | 64.84 | 0.50 | 0.28 | 0.28 | 1.45 | 6.14 |
| FNLA35CS | 34 | 33 | 27.5 | 80 | 9 x 14 x 12 | 22.6 | 37.38 | 0.88 | 0.62 | 0.62 | 0.84 | 6.14 |
